A letter sent to Surrey Council – LRT in Surrey Part 1.

From the usual suspect, long time LRT and tram advocate Malcolm Johnston.

What has been forgotten by most, is the historical context for our light metro system has been lost, due to political, bureaucratic and academic intrigue.

The illustrations have been removed for brevity.



Dear Mayor and Council;

My name is Malcolm Johnston and I have been advocating for modern Light Rail Transit (LRT) since the early 1980ai??i??s. I have been a member of the international Light Rail Transit Association since 1984 and the person who coordinated the Leewood/Rail for the Valley Study, recommending a Vancouver to Chilliwack TramTrain (a variant of LRT) service operating on the former BC Electric rights-of-way. Today I belong to the Rail for the Valley group, promoting the Valley TramTrain.

Except for the odd letter in local newspapers, I have not been involved with the Surrey LRT, until events have forced me to.

I am disturbed with the planning of the Surrey LRT and after consulting with transportation engineers in Canada, the USA and Europe, who are members of the LRTA and/or read the Rail for the Valley blog, my concerns are indeed valid.

Modern LRT combines three concepts, the low-floor tram; the reserved or dedicated rights-of-way, and priority signaling at intersections, which provides a service that rivals todayai??i??s much more expensive metro systems.

Ottawaai??i??s low floor trams have the same capacity of four MK.1 cars or three Mk.2 cars.

Modern LRT made the metro variant, light-metro (what we call locally SkyTrain) obsolete by the end of the 1980ai??i??s.

Today, there are over five hundred and fifty transit systems that fall in the LRT family, with over two hundred built since the Edmonton LRT (considered to be the first modern LRT built) opened in the late 1980ai??i??s. Since this time only seven of the unconventional, proprietary SkyTrain type systems, which has been marketed under the various names including ICTS, ALRT, ALM, and ART, have been built.

Why has modern LRT proven so popular?

The answer is simple economics, as one modern tram (1 tram driver) is as efficient as six buses (6 bus drivers) and for every bus or tram operated, one must hire a minimum of three people to manage, maintain and operate them. When one considers that wages account for about 80% of a transit systemai??i??s operating costs, the savings by operating LRT over a forty year business cycle are considerable.

SkyTrain, an automatic light metro does not see this economy of operation, even though it has no drivers, light metro has many attendants, signaling and maintenance personnel to ensure smooth operation and SkyTrain needs continued bus operation to feed it its customers. This greatly increases operating costs.

When SkyTrain was forced upon the GVRD in 1980, experts of the day opined that SkyTrain would drive up operating costs, which would eventually lead to finical shortfalls and cannibalization of the transit system in the suburbs. These predictions have come true.

The myth that SkyTrain paid its operational costs was exploded in 1992, when the GVRD Study, The Cost of Transporting People in the GVRD found that SkyTrain was heavily subsidized, more than the entire bus system at the time!

Recent studies have also shown that TransLinkai??i??s cost per revenue passenger is about one third higher than Calgary, Edmonton and Toronto.

Even though warnings of high costs for SkyTrain light-metro went unheeded by local politicians and planners, those in other jurisdictions did due diligence and have built with light rail instead.

Again, only seven of the proprietary Ai??ALRT/ART (SkyTrain) systems have been built in forty years.

It is important to understand the difference between LRT and a streetcar.

The difference is not the vehicle, rather it is the concept of the reserved or dedicated rights-of-way, which enables a tram to operate without hindrance. LRT does not impede automobile traffic.

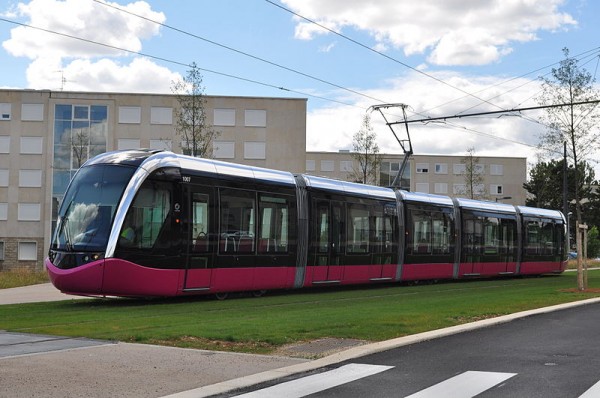

The reserved rights-of-way can be as simple as a HOV lane with rails or in most cases, the reserved rights a way is a boulevard for the exclusive use of the tram. In Europe these boulevards are lawned and landscaped, making the tram route a linear park.

Intersections are signal controlled, giving priority to the tram, over automobile traffic and is just like any other light signaled intersection. Those who claim LRT intersections hinder traffic, must concede that all light controlled intersections hinder traffic and the argument is moot.

A streetcar operates on-street in mixed traffic.

Transit planners in Europe consider that a streetcar or tram route with 60% or more of its route operates on reserved rights-of-ways can be considered LRT.

It also should be noted that there is no operational advantage for grade separating LRT on viaduct or in a subway and it only increases the costs, without any real benefit.

Today, the cost for a modern LRT line, should be around $25 million/km. to $35 million/km.

Surreyai??i??s proposed LRT is being planned as a poor manai??i??s SkyTrain, acting strictly as a feeder line to the now almost capacity Expo Line.

This will adversely affect ridership on the proposed light rail line.

According to one transportation specialist; ai???The Surrey LRT System is just that, itai??i??s entirely Surrey based system and it doesnai??i??t go anywhere else. The benefits only fits a certain subset of the Surreyai??i??s possible transit passenger market. The current route design gives no other connection to the outer region than pouring more passengers on to the SkyTrain system, instead of for example, connecting to the SkyTrain and then by passing it on its own right of way, outwards towards the rest of the region.ai???

The cost of the proposed LRT has now rumored to have surpassed $100 million/km. If this is true, then I am afraid that those planning for LRT are deliberately inflating costs to make the project unbuildable.

This happened in the 1990ai??i??s during the Broadway/Lougheed Rapid Transit Project, where the cost of LRT was deliberately inflated to within 7% of that of SkyTrain, which then made the flip-flop from LRT to SkyTrain, what we now call the Millennium Line, publicly acceptable.

I see the same scenario happening now, in 2017.

I do support modern LRT in Surrey. I do not support the present planning as it both expensive and myopic and I would strongly urge the City of Surrey to engage a company with the expertise in planning, building and operating with LRT, as Rail for the Valley group did, by engaging Leewood Projects of the UK for an unbiased study for the feasibility of a ai???railai??i?? service from Vancouver to Chilliwack.

In 2010 The Leewood Study found that a 130 km. Vancouver to Chilliwack TramTrain (a variant of LRT), track-sharing with the existing railway line, could be built for just under one billion dollars!

Modern light rail is extremely adaptable in operation as it can be built as a streetcar, light rail, or a tramtrain.

LRT can also carry freight or have ai???Bistroai??i?? cars serving light refreshments and even vintage trams can operate on LRT lines.

Modern LRT has over 125 years of development behind it and there is plenty of scope for LRTai??i??s continued development in the future.

This why LRT is built today, its inherent simple design and operating philosophy enables to mode to operate economically where it is built. Designed right, light rail can provide a user friendly alternative to the car.

Those who advocate for SkyTrain, advocate for a dated proprietary transit system, which costs more to build, maintain, and operate than LRT. ALRT/ART was designed in the 1970ai??i??s to cope with 1970ai??i??s transit issues.

LRT constantly evolves and never becomes ai???stale-datedai???, evidenced by many tramways that can trace their linage over 120 years of operation and now operate as modern light rail.

Light rail transit is truly the transit mode of the 21st century and should be designed as such, which at present it is not.

Malcolm Johnston
